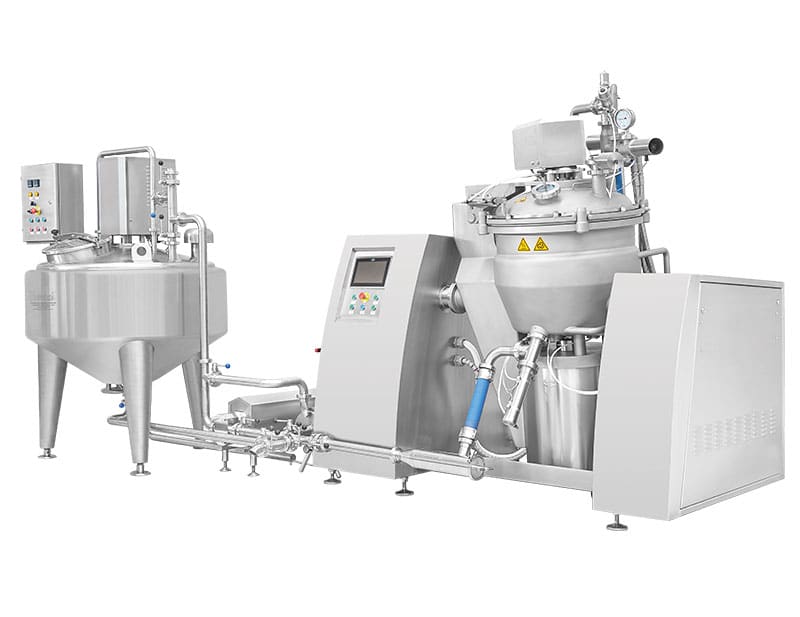

The UZERMAK Multifunctional Industrial Mixers (Cooker& Cooler& Mixer) are configurable for many different applications, some examples are processed cheese, dressings, sauces, baby food, confectionery fillings, almond paste, mayonnaise & ketchup and be able to handle with different tasks such as mixing, heating up, cooling, grinding, emulsifying, size reduction, direct or indirect cooking under vacuum, deaerating (vacuum) and homogenizing.
| Machine data: | ||
| Bowl capacity | l | 200 |
| Batch quantity (product dependent), min-max | l/ batch | 60-170 |
| Processing temperature, max | °C | 95 (optional 125 °C) |
| Steam consumption | kg/h | 300 |
| Energy requirements: | kW | |
| Tilting | kW | 1,4 |
| Main motor | kW | 45 |
| Scrapper’s motor | kW | 1,5 |
| Vacuum pump | kW | 2,2 |
AISI 304 quality stainless steel material
Bowl capacity: 200 liters
Sight glass with wiper on the lid
Product processing capacity: max. 170 liters/ batch
Processing temperature: max 95 °C
Automatic opening & locking of lid
Automatic tilting
Direct steam injection, 4 nozzles
Double jacket (Heating/ cooling)
Vacuum pump
Discharge valve
PLC and touch screen
Electromagnetic flowmeter
Thermometer
Water cooled mechanical double seal

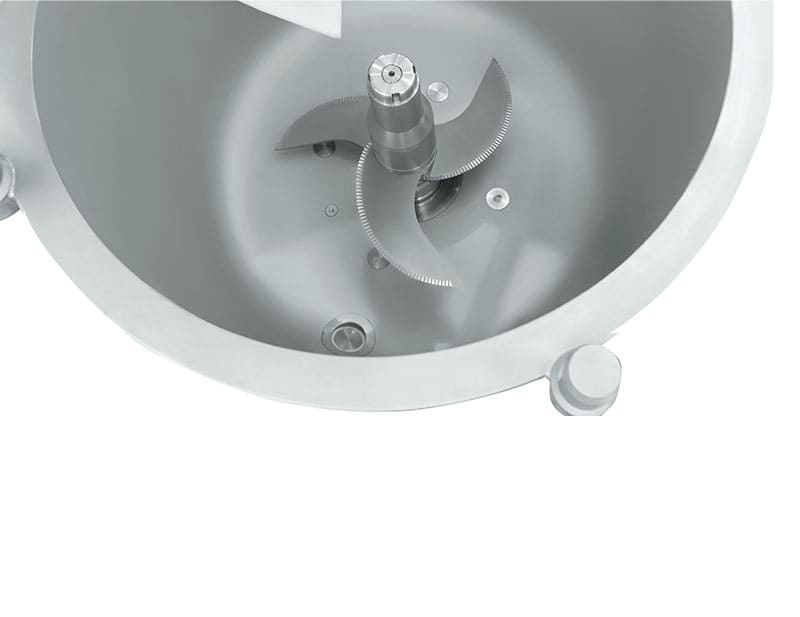

Frequency controlled main motor: 3 knives with 0-3000 rpm
Scrapper’s motor and gearbox
Steam separation & filtration & pressure regulation station
Vacuum condenser for cooling & dehumidifying
AISI 316 quality stainless steel material
Processing temperature: max 125 °C
Buffer tank
Discharge pump
Mass flowmeter
Flooring funnel for adding raw materials
Inline mechanical homogenizer-FetaCUT Lifter
Short batch time
Energy efficient
Easy to integrate in a production line
PLC process controlling system
Component from the most reliable brands
Configurable for many different applications
Complete product emptying (Minimal losses)
